Alloy 59: Material Properties and Cost-Effective Tool Selection

 Fundamental Properties and Application Areas of Alloy 59

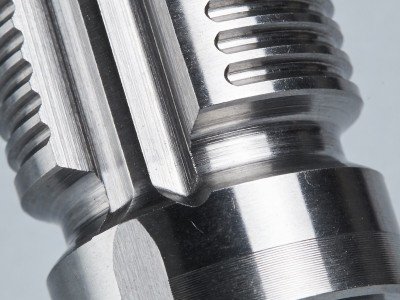

Alloy 59 (UNS N05590) is a high-performance nickel-based superalloy with a precisely controlled chemical composition. It contains approximately 59% nickel, 23% chromium, and 16% iron, with small additions of alloying elements such as molybdenum and titanium to optimize its overall performance.

Its key advantages can be summarized in three aspects:

• Exceptional corrosion resistance, particularly in both oxidizing and reducing acidic environments
• Excellent high-temperature strength, maintaining structural stability under severe thermal conditions
• Good weldability, enabling the fabrication of complex structural components

Thanks to these properties, Alloy 59 is widely used in chemical processing equipment, offshore engineering systems, flue gas desulfurization units, and nuclear industry components, where materials are exposed to extremely demanding service conditions.

Key Machining Challenges of Alloy 59

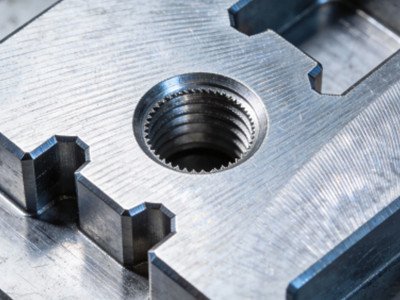

The outstanding mechanical and chemical properties of Alloy 59 also make it a typical difficult-to-machine material. During machining, several challenges arise directly from its inherent material characteristics:

• High toughness, resulting in significantly increased cutting forces and higher demands on machine rigidity
• Low thermal conductivity, causing cutting heat to concentrate in the cutting zone and accelerating tool wear or premature failure
• Strong tendency for adhesion and built-up edge formation, which damages the cutting edge and negatively affects surface finish and dimensional accuracy

These factors collectively increase machining difficulty and complicate process control.

Tool Insert Selection Principles and Layered Strategy

Tool selection for Alloy 59 should follow the core principle of material compatibility, efficiency optimization, and cost control. Based on production volume, machining stage, and efficiency requirements, a layered tool selection strategy is recommended to achieve maximum economic benefit while maintaining machining quality.

Key machining characteristics to consider include:

• High cutting loads requiring excellent machine tool rigidity
• Pronounced work hardening; excessively small feed rates may intensify hardening and impair subsequent machining
• Rapid tool wear; conventional carbide tools often suffer from extremely short service life
• High surface integrity requirements, with strict control of microcracks and residual stresses

Tool Insert Selection Strategy: Balancing Efficiency and Cost

Based on the machining characteristics of Alloy 59, the following tiered tool solutions are recommended:

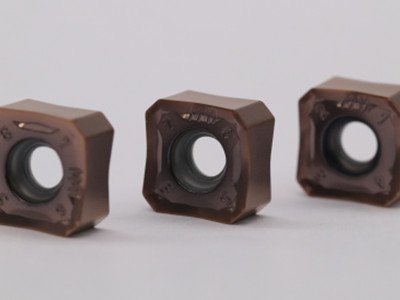

(1) Preferred Solution: Fine-Grain Coated Carbide Inserts

Fine-grain carbide inserts in ISO K20–K30 grades, reinforced with TaC or NbC phases, or dedicated superalloy machining grades, are strongly recommended. Multi-layer TiAlN or AlCrN coatings provide excellent hot hardness and resistance to crater wear.

These inserts are suitable for turning and milling operations, offering low unit cost, easy tool replacement, and strong adaptability—making them the most economical choice for small to medium batch production.

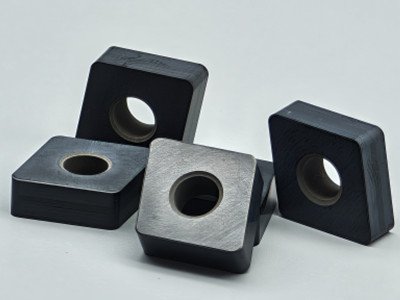

(2) High-Efficiency Option: SiAlON Ceramic Inserts

For stable cutting conditions in continuous roughing and semi-finishing turning, SiAlON ceramic inserts allow cutting speeds 2–3 times higher than carbide tools, significantly improving productivity and reducing cycle time.

However, due to their inherent brittleness, they should not be used for interrupted cutting or thin-walled components, where edge chipping or tool breakage may occur.

(3) Cautious Use: PCD / CBN Superhard Tools

PCD tools exhibit poor chemical stability when machining iron-based materials and are therefore unsuitable for Alloy 59.

CBN tools offer excellent thermal resistance but are costly, and their performance advantages for Alloy 59 are limited. As a result, they are generally not recommended for this application.

 Supporting Process Optimization Recommendations

Optimal tool performance can only be achieved when combined with well-designed machining parameters and process strategies:

• Adopt a high-feed, low-depth-of-cut approach to minimize tool residence time within the work-hardened layer
• Control cutting speed carefully: for carbide tools, a range of 40–80 m/min is recommended
• Use high-pressure internal coolant systems with water-based cutting fluids to rapidly remove heat and improve chip evacuation
• Avoid unnecessary tool dwell or stops during cutting to prevent secondary work hardening on the workpiece surface

Application Case Study and Performance Validation

In a valve stem machining application using Alloy 59, conventional carbide inserts could machine only three parts per cutting edge. After switching to dedicated coated carbide inserts for high-temperature alloys, tool life increased to over 25 parts per edge.

Surface roughness was consistently maintained at Ra ≤ 1.6 μm, and overall machining costs were reduced by approximately 35%, achieving a balanced improvement in quality, efficiency, and cost control.

 Summary and Practical Recommendations

Machining Alloy 59 does not necessarily require expensive superhard tools. By selecting dedicated coated carbide inserts and optimizing cutting parameters and cooling strategies, manufacturers can achieve high-efficiency, cost-effective production without compromising surface quality or dimensional stability.

This approach provides a practical and economical solution for small and medium-sized manufacturers facing the challenges of machining difficult-to-cut nickel-based alloys.
