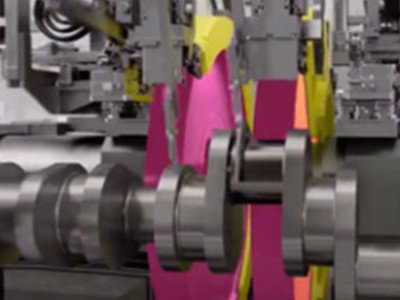

CNC cylindrical grinding machine is very common in die factory and hardware processing plant, and has become the common equipment of the majority of mechanical industry technicians, in the operation of the cylindrical grinding machine, the choice of abrasive is very important. The harder the grinding roller surface, the softer the grinding wheel hardness should be.
(1) If the grinding wheel wears too fast, it means that the grinding wheel selected for the specific processing roller is too soft, the following improvement measures can be taken:
A. Improve the linear speed of the grinding wheel;
B. Increase the longitudinal feed speed of the towing plate, that is, increase the longitudinal feed of the workpiece to 2/3~3/4 of the width of the grinding wheel;
C. Reduce roll speed. If the grinding effect is not obvious after taking the above measures, it indicates that the grinding wheel is too soft and not applicable, and a harder grinding wheel should be selected.
(2) if the grinding wheel is obviously blocked (labored) or dirty when grinding the roller, the passivating sand is not easy to fall off, the grinding wheel is easy to stick to the grinding debris, and the grinding roller surface is burned or brushed, then the grinding wheel selected is too hard and the following measures can be taken to improve:
A. Reduce the grinding wheel linear speed;
B. Increase roll speed.
If the grinding effect is not obvious after taking the above measures, it indicates that the grinding wheel is too hard and a softer grinding wheel should be selected.

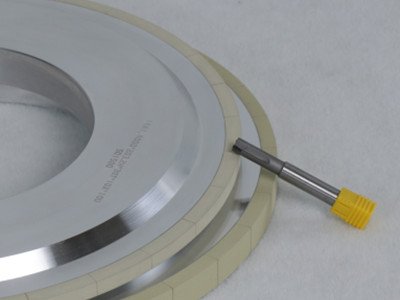

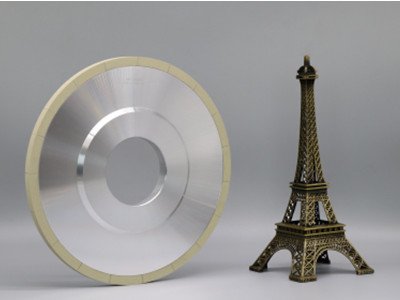

Moresuperhard is a diamond & cbn grinding wheel manufacturer from China.Moresuperhard provide quality cylindrical vitrified diamond grinding for grinding PCD reamers.
Application: cylindrical grinding PCD reamer
Bonded: vitrified bond or ceramic bond
Model: 3A1, 14A1 grinding wheel
