Diamond cutting blades designed for magnetic materials are engineered for high-precision cutting of hard and brittle magnetic components. These blades ensure clean edges, minimal chipping, and excellent dimensional stability, making them ideal for advanced industries such as electronics, new energy, and motor manufacturing.
They are suitable for cutting a wide range of magnetic materials including sintered and bonded magnets, delivering high efficiency and consistent performance in both wet and dry cutting conditions.
Cutting of NdFeB (Neodymium Iron Boron) magnets
Processing of Ferrite magnets (soft & hard ferrite)
Slotting and trimming of AlNiCo magnets
Precision cutting of SmCo magnets
✔ Sharp Cutting Performance
High-quality diamond abrasives ensure fast cutting speed and reduced cutting force
✔ Minimal Chipping & Cracking
Optimized bond system reduces edge damage on brittle magnetic materials
✔ High Precision & Stability
Excellent flatness and dimensional control for tight tolerance applications
✔ Long Service Life
Uniform diamond distribution ensures consistent wear and extended lifespan
✔ Customizable Design
Available in different diameters, thicknesses, and bond types to match various machines and applications
| Parameter | Description |
|---|---|
| Diameter Range | 50 mm – 400 mm |
| Thickness | 0.2 mm – 3.0 mm |
| Bore Size | Customized |
| Abrasive Type | Diamond |
| Grit Size | D46 – D126 |
| Bond Type | Resin / Metal |
| Cutting Method | Wet / Dry |
| Machine Type | Dicing saw, precision cutting machine |

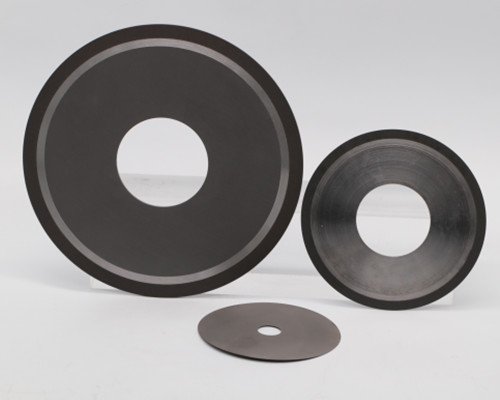

Resin Bond
Best for fine cutting and low chipping
Suitable for thin blades and precision applications
Metal Bond
Higher wear resistance and longer life
Ideal for high-volume production
Blade diameter & thickness
Segment design (continuous / segmented)
Arbor size & mounting type
Grit size & concentration
Bond formulation optimized for your material
Looking for the right cutting solution for magnetic materials?
Contact us today for customized diamond cutting blades and improve your cutting efficiency and product quality.
