Diamond grinding points are specially designed for precision machining of advanced ceramics such as alumina, zirconia, silicon carbide, and silicon nitride.
With superior hardness and wear resistance, diamond abrasives ensure efficient material removal, excellent surface finish, and long tool life, making them ideal for CNC grinding, contouring, slotting, and internal surface finishing.
High Grinding Efficiency
Sharp diamond grains enable fast cutting with reduced grinding force
Excellent Surface Quality
Achieve low roughness and minimal subsurface damage
Long Service Life
Strong bond systems ensure durability and consistent performance
Customizable Designs
Available in various shapes, sizes, grit sizes, and bond types
Stable Performance
Suitable for high-speed CNC machining with good thermal stability

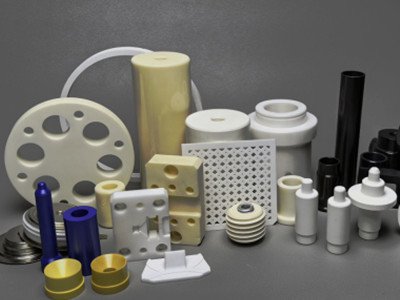

Widely used in precision machining of advanced ceramic materials:
Alumina (Al₂O₃),Zirconia (ZrO₂),Silicon Carbide (SiC),Silicon Nitride (Si₃N₄),Ceramic sealing components,Electronic ceramic parts,Medical ceramic components.
Typical operations:
✔ Internal grinding
✔ Contour/profile grinding
✔ Grooving & slotting
✔ Deburring & finishing

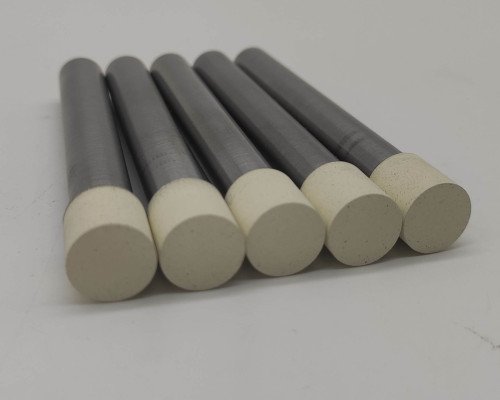

We offer a wide range of diamond grinding points:
Cylindrical grinding points
Conical grinding points
Ball nose grinding points
Custom-shaped grinding heads
All tools can be tailored based on your specific application and machine requirements.
| Parameter | Options / Range |
| Abrasive | Diamond |
| Grit Size | D15 – D181 |

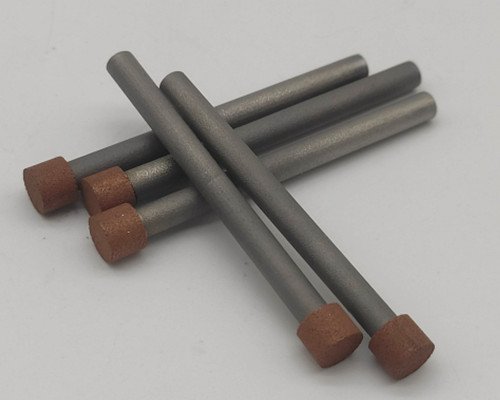

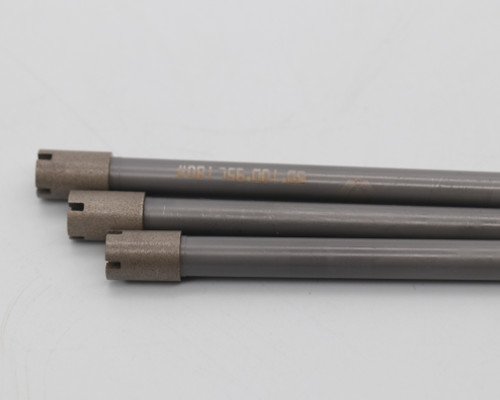

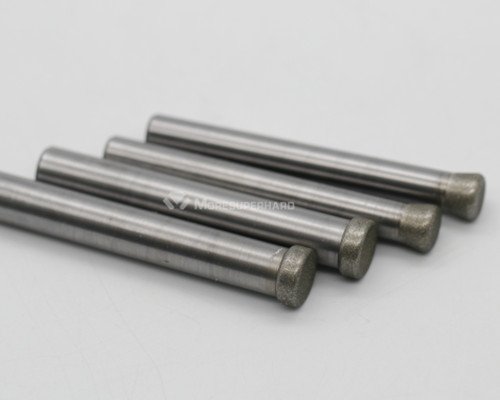

| Bond Type | Resin / Metal / Vitrified/Electroplated |
| Diameter | 1 mm – 20 mm |
| Shank Diameter | 3 mm / 6 mm / Custom |
| Shape | Cylindrical, Ball, Cone, Custom |
| Concentration | Standard / High concentration |
