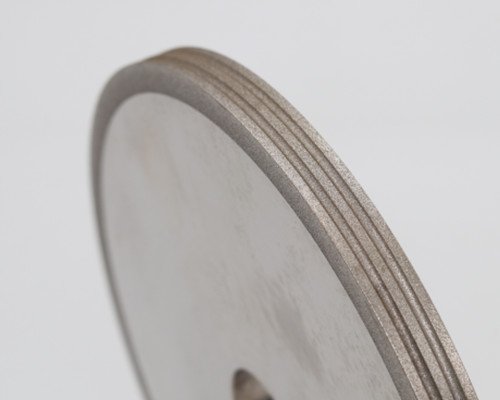

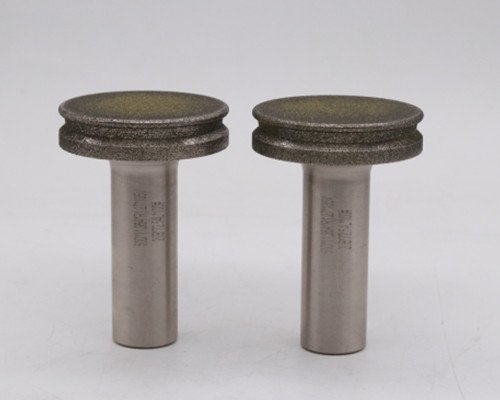

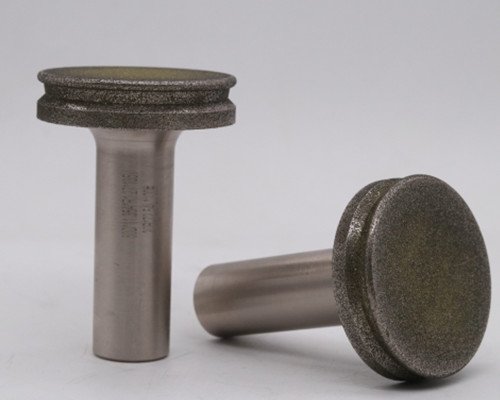

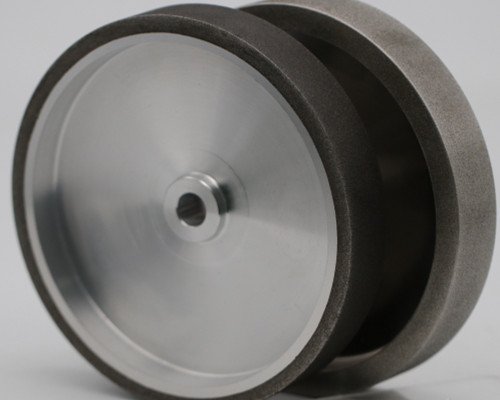

Electroplated CBN (Cubic Boron Nitride) grinding wheels are engineered using a single-layer electroplating process, where high-quality CBN abrasive is firmly bonded to a high-strength metal core. These wheels are ideal for precision grinding of difficult-to-machine materials, especially nickel-based superalloys such as Inconel, GH4169, etc.
Sharp and Wear-Resistant: Strong cutting ability and reduced thermal damage.
No Dressing Required: Ready-to-use, stable form.
High Dimensional Accuracy: Ideal for complex profiles.
Thermal Stability: Suitable for dry or oil-cooled grinding.
Extended Tool Life: Excellent performance in continuous production.
Aircraft engine components: blades, turbine discs, nozzle rings
Oil, gas, and nuclear sector parts requiring high heat resistance
Superalloy cutting tools and hot-working molds
| Shape | Type | Outer Diameter (mm) | Bore (mm) | Thickness (mm) | Grit Size | Notes |
|---|---|---|---|---|---|---|
| Flat Wheel | 1A1 | Ø100–Ø400 | Ø20–Ø127 | 5–20 | B91–B151 | Custom widths and profiles available |
| OD Grinding | 3A1, 14A1 | Ø50–Ø250 | Ø20–Ø100 | 5–10 | B91/B126 | For cylindrical grinding machines |
| Profile Grinding | 11V9, 6A2 | Ø100–Ø200 | Ø31.75/Ø50.8 | 5–10 | B76–B151 | For form/contour grinding |
