High-speed rough grinding of heavy stainless steel workpieces in foundries and steel mills has long been plagued by frequent wheel wear, workpiece burn marks and potential safety hazards under high-speed working conditions. Recently, Moresuperhard has launched the 510-50-203.2 specification zirconium hot-pressed grinding wheel for the overseas foundry market. It perfectly adapts to the mainstream industrial swing frame grinder and achieves dual optimization of working efficiency and consumable cost in the polishing and cleaning of gates, risers and surface defects of SS304 and SS316 large castings and steel billets, providing a one-stop heavy-duty grinding abrasive solution for global foundry and stainless steel heavy industry enterprises.

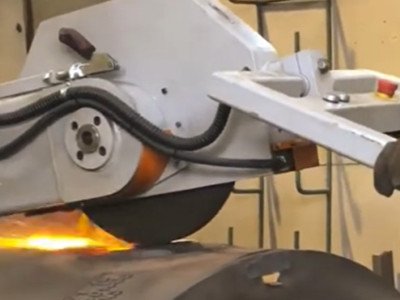

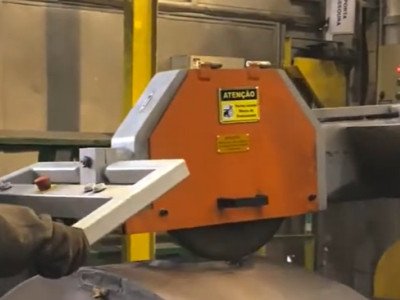

The swing frame grinder is the core heavy-duty polishing equipment for processing heavy castings, steel ingots and forgings in foundries and steel mills. Different from ordinary desktop grinders, it is suspended and balanced by a crane or cantilever crane, realizing flexible “machine follows operator” polishing for large-tonnage workpieces. Equipped with a 4-pole explosion-proof three-phase motor, the spindle speed of the grinder can reach 1900–2200 RPM after belt speed increase, forming an extreme working condition ofhigh speed, heavy pressure and long-term continuous grinding:
– Processing Material: SS304/SS316 austenitic stainless steel with poor thermal conductivity, prone to chip adhesion and high-temperature workpiece burn;
– Polishing Requirements: Mass removal of casting gates, risers, burrs, welding beads and surface defects of steel billets;
– Operation Mode: Manual pressure grinding, requiring grinding wheels with strong impact resistance and high wear resistance;
– Safety Standards: Stable dynamic balance and excellent explosion-proof strength to adapt to 2100 RPM high-speed operation.
Ordinary brown corundum and white corundum grinding wheels have prominent defects in actual operation: fast passivation, frequent clogging, large consumption, high scrap rate of stainless steel castings due to burn marks, and frequent shutdowns for wheel replacement, which seriously restrict workshop production capacity.

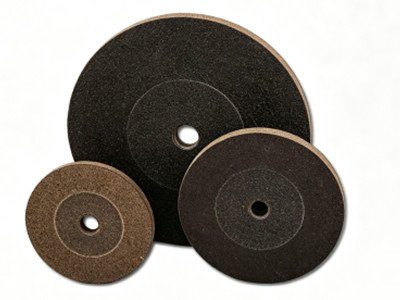

With more than ten years of R&D and production experience in superhard abrasive tools, Moresuperhard has customized zirconium hot-pressed rough grinding wheels targeting the working conditions of overseas foundry swing frame grinders. The standard stock size is 510×50×203.2, which perfectly fits the spindle of Indian customers’ equipment. We also provide full-size customization of 300mm/400mm wheels, solving core industry pain points with four major advantages:
– Self-sharpening Zirconium Abrasive, No Adhesion & No Burn for Stainless Steel Polishing
Adopting high-toughness zirconium abrasive, the wheel continuously exposes new cutting edges through micro-crushing during grinding, effectively avoiding clogging by stainless steel chips. The exclusive heat-dissipating binder formula greatly reduces grinding temperature, fundamentally preventing blackening and burn marks on 304/316 castings and reducing rework costs.
– Integrated Hot-pressed Molding, Safe & Durable Under High-Speed Conditions
Adopting industrial-grade hot-pressed integrated molding technology, the grinding wheel features uniform density and high dynamic balance accuracy, ensuring jitter-free and burst-free operation at 2200 RPM high speed. Reinforced with multi-layer high-strength glass fiber mesh, it resists manual grinding impact, with a service life more than 60% longer than ordinary corundum grinding wheels.
– Universal Standard Size, Direct Installation for Global Swing Frame Grinders
The 510-50-203.2 specification with a 203.2mm inner hole adopts a universal industrial standard, requiring no adapter flange and compatible with most swing frame grinders at home and abroad. Mass production of 300mm and 400mm small and medium-sized zirconium grinding wheels covers equipment with different motor power.
– High-efficiency Heavy Cutting, Reducing Comprehensive Workshop Operating Costs
The sharp cutting performance of zirconium abrasive improves the removal efficiency of casting gates, risers and steel billet defects by 20%. The frequency of grinding wheel replacement is halved under the same grinding volume, reducing shutdown time and effectively improving the overall production capacity of the workshop polishing station.
An Indian professional stainless steel casting enterprise added a large-scale casting polishing process and purchased batch swing frame grinders. The enterprise has long faced three major problems when using traditional grinding wheels:
– Extremely fast wheel wear during SS316 steel billet polishing, leading to high monthly consumable procurement costs;
– High grinding temperature causes large-area workpiece burn marks and a high product scrap rate;
– Poor dynamic balance of ordinary wheels causes severe equipment vibration and high labor fatigue for workers.
After communicating with Moresuperhard’s technical team, the customer adopted the 510-50-203.2 zirconium hot-pressed grinding wheel for a 72-hour continuous batch polishing test, achieving significant improvements:
– The service life of the grinding wheel is increased by about 60%, greatly reducing consumable procurement costs;
– No chip adhesion or surface burn marks on stainless steel castings, significantly improving product yield;
– Slight vibration during high-speed operation with smooth operation, reducing workers’ labor intensity;
– Perfectly adapting to the 2100–2200 RPM high speed of the equipment, effectively improving the efficiency of gate/riser cleaning and weld root cleaning.
At present, the Indian customer has established long-term and stable cooperative relations with Moresuperhard and recommends our products to surrounding foundries and steel mills for trial use.
Widely compatible with all types of heavy-duty swing frame grinders, Moresuperhard zirconium hot-pressed rough grinding wheels serve multiple industrial scenarios:
– Foundry Industry: Rough cleaning of gates, risers and burrs of stainless steel and carbon steel large castings;
– Steel Mill Industry: Surface defect polishing and pre-inspection cleaning of steel ingots, steel billets and large forgings;
– Heavy Steel Structure Industry: Weld root cleaning and weld bead polishing of large welded parts.
– Customized Specifications: Custom production based on customer equipment parameters including motor power, wheel outer diameter, thickness and inner hole size;
– Professional Technical Support: One-stop personalized technical guidance for speed matching, grinding wheel selection and high-speed grinding safety specifications;
– Full-Cycle Foreign Trade Services: Custom export moisture-proof packaging, complete customs declaration qualification documents, supporting bulk orders from India, Southeast Asia and other global regions.
